Steam systems are among the most deeply integrated — yet routinely overlooked — utility systems in the CPI. As decarbonization initiatives take off, steam systems are impacted in ways that can influence project feasibility, operability and economics
Steam systems have long been the backbone of energy integration in the chemical process industries (CPI), especially in ammonia, methanol and ethylene plants, where steam stabilizes utility balances, recovers process heat and drives major rotating equipment. Conventional steam networks were designed around predictable combustion-based heat recovery, steam-turbine-driven compression and reliable condensate return. They worked well because the underlying process operations were relatively stable and steam-rich.
That stability is now being disrupted. Decarbonization initiatives, carbon capture, hydrogen-based firing, autothermal reforming (ATR), electric motor drives and hybrid driver arrangements are being evaluated primarily for their carbon-reduction potential. Their upstream and downstream consequences for steam generation, header balance and turbine utilization receive far less systematic attention at the early project stage.
The consequences are significant. Carbon-capture and sequestration (CCS) systems often introduce new demand for medium- and low-pressure steam that may not align with existing utility infrastructure. Hydrogen firing and ATR-based generation of synthesis gas (syngas) alter heat-recovery profiles, steam-generation locations and utility-integration requirements. Electrification of compressor drives changes extraction flows, pressure letdown requirements and condensate return patterns. Facilities that historically operated with comfortable steam-export margins may move toward tighter utility balances or, in some configurations, steam-deficit conditions.
These shifts matter greatly in ammonia, methanol and ethylene plants because steam systems in these facilities are directly coupled to core process operations: syngas generation and compression in ammonia and methanol plants; cracking-furnace heat recovery and refrigeration compression in ethylene plants; and the overall site energy balance. In many emerging low-carbon configurations, steam-system integration is not a secondary utility concern; it is one of the primary determinants of project feasibility.
This article examines how steam-system architecture is evolving across conventional and low-carbon configurations in ammonia, methanol and ethylene production. Focus areas include steam generation, turbine and motor driver utilization, steam-header balance, condensate management and utility integration. Figure 1 illustrates the conventional steam-rich utility architecture that historically characterized all three industries, and provides the baseline against which subsequent decarbonization-driven changes are evaluated.

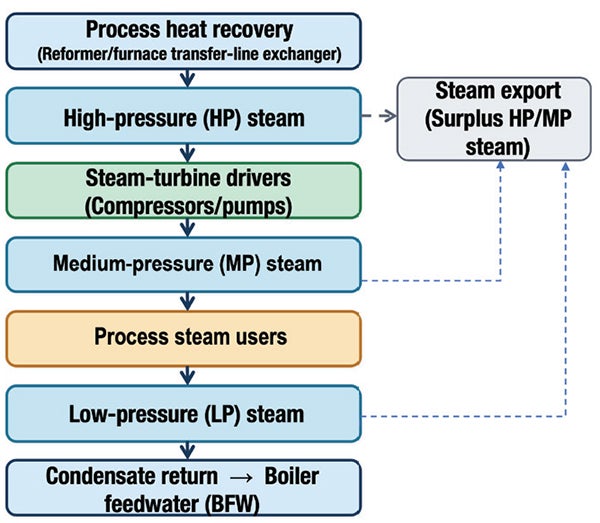

FIGURE 1. This flow diagram shows the conventional steam-rich utility architecture common to ammonia, methanol and ethylene plants
Conventional steam architecture
Conventional steam systems in ammonia, methanol and ethylene plants have typically been optimized around three shared principles: maximize the recovery of process heat to high-pressure steam; drive major compressors and pumps with steam turbines; and maintain a consistent steam-export surplus. The result was a deeply integrated utility network in which steam generation, process heat recovery and compression power were tightly coupled.
In ammonia plants, high-pressure steam was closely tied to heat recovery from primary and secondary reformers, shift conversion cooling and synthesis-loop heat exchange. Large steam-turbine drivers for process air, syngas and refrigeration compression became both the primary power consumers and a principal mechanism for steam-header balance management.
Conventional methanol plants followed a similar philosophy, although with lower overall steam intensity than ammonia plants. As single-train capacities grew beyond approximately 3,000 metric tons per day (m.t./d), combined steam-methane reformer (SMR) and ATR configurations became standard for large-scale methanol production. Steam generation remained distributed among reformer heat recovery, ATR effluent cooling, downstream syngas cooling and synthesis-loop heat recovery, while process saturators and boiler-feedwater preheating reduced direct demand for process steam at the reformer inlet. Depending on the selected process configuration, steam-system architecture varied meaningfully among licensors and project designs.
Conventional ethylene crackers followed a highly integrated steam-and-power philosophy. High-pressure steam generated from transfer-line exchanger heat recovery, furnace convection-section heat recovery, and boiler-feedwater economization supported cracked-gas and refrigeration compressor turbines while often providing significant net steam export (shown in Figure 1). Depending on feedstock and cracking severity, additional heat recovery from quench-water and quench-oil systems further enhanced steam generation and utility integration, creating a steam economy closely coupled to furnace operation.
Despite differences in configuration, these conventional systems shared critical operating characteristics: stable heat-recovery profiles, predictable steam-turbine demand, and reliable condensate return. These are precisely the characteristics that decarbonization measures are now disrupting.
The impact of decarbonization
Deep decarbonization is changing steam systems in ways that extend well beyond fuel substitution. Several conventional utility-system design assumptions are being challenged simultaneously.
One of the most significant changes is the increasing use of electric motor drives and hybrid driver arrangements in place of traditional steam turbines. Conventional steam systems were designed around major turbine-driven compressor services that formed an integral part of the steam balance. As driver configurations evolve, steam consumption patterns change, affecting steam export, pressure-level balance, condensate return and overall utility integration.
Carbon-capture integration frequently introduces additional steam demand that was not anticipated in the original utility design basis, particularly for solvent regeneration and associated CO2 processing systems. In many retrofit situations, the required low-pressure steam and utility integration cannot be accommodated without auxiliary steam generation, steam-system modifications, driver reconfiguration or broader utility-system changes.
Hydrogen firing and ATR-based syngas generation alter conventional heat-recovery patterns. Steam-generation locations, heat-recovery profiles and net export capability can differ substantially from those of traditional reformer- and furnace-based systems. Facilities that historically operated as net steam exporters may transition to tighter steam balances or, in some configurations, require supplemental steam generation.
Beyond these individual impacts, low-carbon projects are increasingly evaluated against a broader set of site-level criteria, including power-import strategy, cooling-water availability, startup flexibility, capital efficiency and long-term operability, rather than solely against maximum steam-turbine energy recovery. In many facilities, decarbonization measures are likely to be implemented in stages, requiring steam systems to remain flexible across multiple intermediate operating configurations rather than a single end-state design. Steam systems are therefore evolving from stable utility networks into dynamic operating systems that increasingly influence the technical and economic viability of low-carbon projects.
Steam evolution: Ammonia plants
Conventional SMR-based ammonia plants were designed around extensive process heat recovery and large steam-turbine-driven compression services. High-pressure steam generated from reformer heat recovery, shift-conversion cooling and synthesis-loop heat exchange supplied process users, drove major compressors and typically provided a substantial steam export surplus. A representative conventional ammonia steam system is shown in Figure 2.

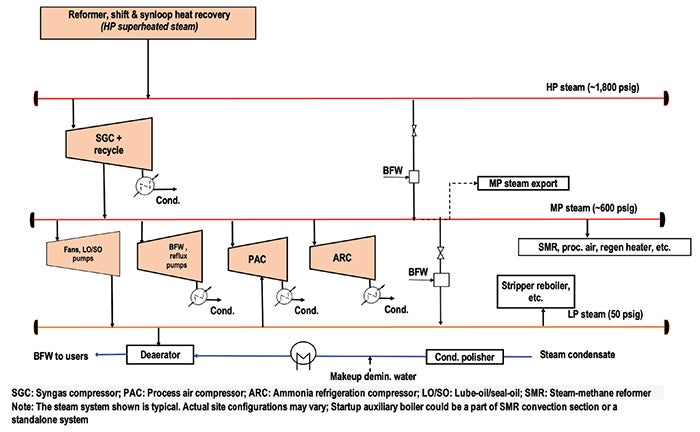

FIGURE 2. A steam system in a conventional SMR-based ammonia plant is shown
One major decarbonization pathway is conversion to externally supplied clean hydrogen combined with imported nitrogen from an air separation unit (ASU). In this configuration, the entire syngas-generation front-end, including reforming, shift conversion and CO2 removal, becomes redundant. Reformer- and shift-derived high-pressure steam generation disappears, leaving synthesis-loop heat recovery as the sole significant steam source. The resulting utility balance is characterized by the loss of the high-pressure steam system, limited steam availability, reduced turbine utilization, heavy dependence on imported power and greatly reduced operating flexibility compared with the original design. The corresponding steam balance for a representative clean-ammonia retrofit is shown in Figure 3.

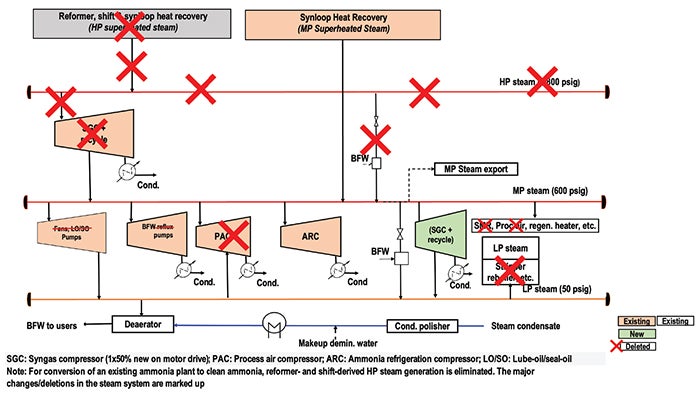

FIGURE 3. For conversion of existing ammonia plants to clean ammonia, reformer- and shift-derived HP steam generation is eliminated. Major steam-system changes and deletions are shown in red
New-build blue-ammonia plants based on ATR or partial oxidation with integrated carbon capture represent a second pathway. Unlike clean-ammonia retrofits, these plants remain significant steam producers. Steam generation shifts from the primary reformer toward downstream ATR and synthesis-loop heat recovery. The key change is not necessarily reduced overall steam production, but a fundamentally different distribution of where steam is generated and how it is utilized. A representative ATR-based blue-ammonia steam system is shown in Figure 4.

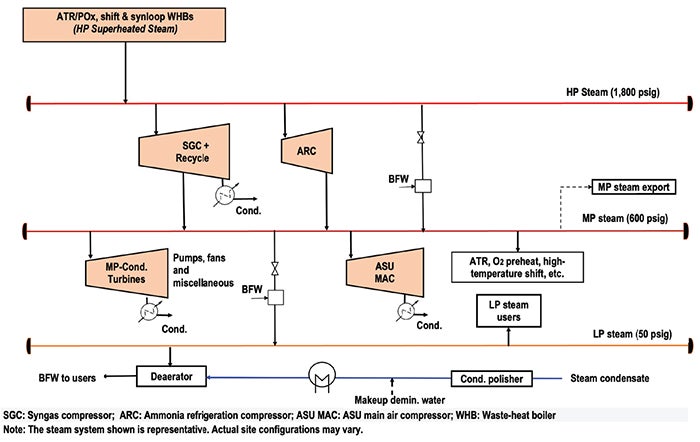

FIGURE 4. Next-generation ATR-based blue-ammonia steam system, where major steam generation is shifted from primary-reformer to ATR/POx waste-heat recovery
Green ammonia plants eliminate reforming entirely, but synthesis-loop heat recovery can still generate useful quantities of superheated steam. In most configurations, major compression services are electrically driven, and the recovered steam is used primarily for power generation, steam export or utility balancing. Steam systems, therefore, remain relevant in fully electrolytic ammonia plants, although their role shifts from reformer-based process integration toward utility optimization, power recovery and steam-power balancing.
The transition from conventional to clean-, blue- and green-ammonia pathways fundamentally changes steam-generation sources, utilization patterns and the balance between steam and electrical power. These differences are summarized in Table 1. Steam-system design is consequently becoming a critical differentiator in the economics, operability, flexibility and long-term competitiveness of low-carbon ammonia projects.

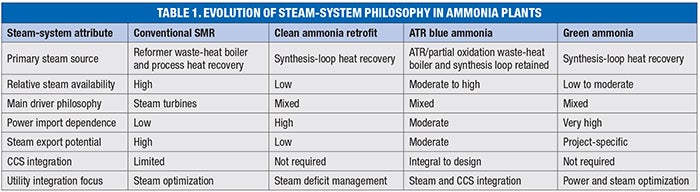

As decarbonization pathways diverge, steam-system architecture is becoming a key differentiator among ammonia production technologies rather than a largely standardized utility function.
Steam evolution: Methanol plants
Conventional SMR-based methanol plants were designed around reformer heat recovery, synthesis-loop heat integration and steam-turbine-driven compression. Although generally less steam-intensive than ammonia plants, steam generation, processheat recovery and compression power remained closely integrated within the overall plant energy balance.
As methanol capacities increased beyond approximately 3,000 m.t./d, combined SMR-ATR configurations became standard for large single-train projects. Steam generation remained distributed among reformer heat recovery, ATR effluent cooling, downstream syngas cooling and synthesis-loop heat recovery. Depending on whether synthesis-loop heat recovery was used for direct steam generation or for boiler-feedwater preheating integrated with process saturation, steam-system architecture varied meaningfully across licensors and project configurations.
ATR-dominant methanol configurations represent a further evolution. While ATR technology itself has been commercially applied for decades, recent low-carbon methanol concepts place greater emphasis on ATR-based syngas generation integrated with carbon capture. In these configurations, steam generation becomes increasingly associated with ATR effluent cooling, downstream syngas cooling and carbon-management integration rather than primarily with reformer heat recovery. The progression from SMR to SMR-plus-ATR to ATR-dominant configurations is illustrated in Figures 5, 6 and 7.

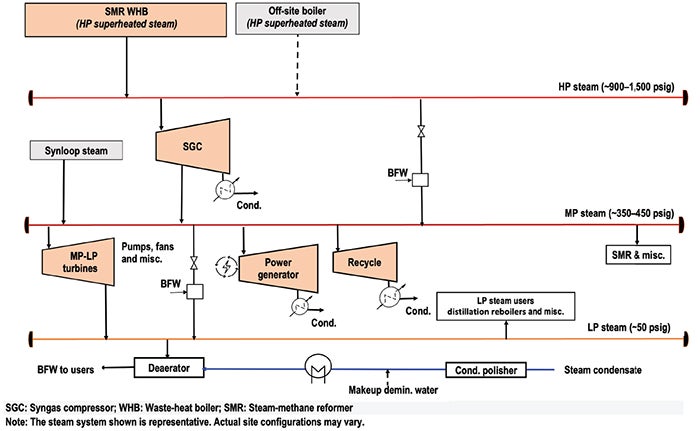

FIGURE 5. A conventional methanol plant’s (based on SMR only) steam system is shown

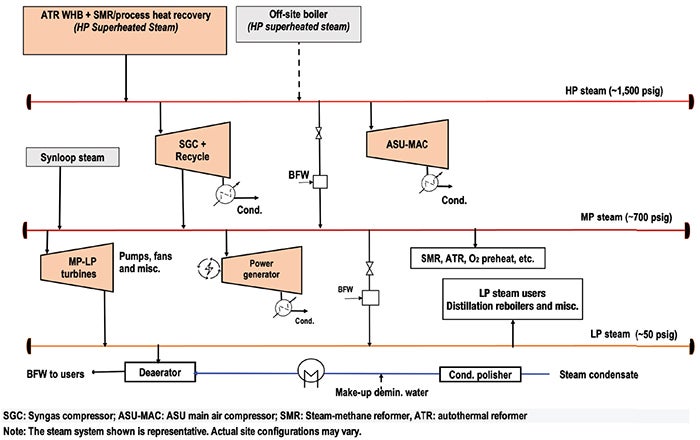

FIGURE 6. A steam system for a large (>3,000 m.t./d) methanol plant, based on SMR and ATR technology, is shown

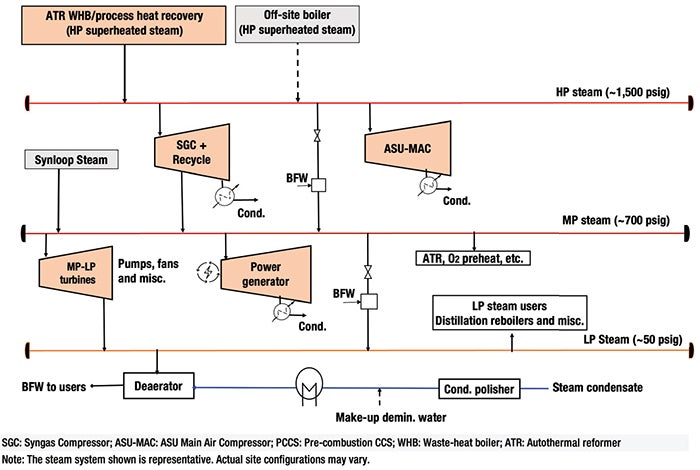

FIGURE 7. This representative low-carbon methanol configuration uses ATR-based syngas generation with pre-combustion CCS
Decarbonizing methanol requires both a low-carbon hydrogen source and a qualified low-carbon carbon source. Depending on project objectives and carbon-intensity requirements, this carbon may be supplied from biogenic CO2, ethanol fermentation CO2, direct air capture CO2 or appropriately qualified industrial CO2 streams. Future methanol steam systems will consequently evolve through changes in syngas-generation technology, carbon-capture integration, CO2-handling requirements, renewable power utilization and hydrogen-production infrastructure. The corresponding evolution in steam generation, utilization, and readiness for decarbonization is summarized in Table 2.

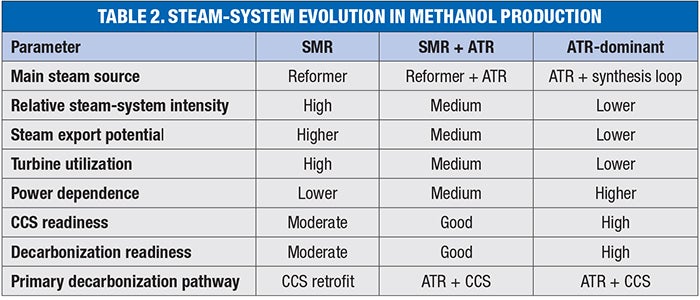

Steam evolution: Ethylene plants
Conventional ethylene crackers developed some of the most highly integrated steam and power systems in the petrochemical industry. High-pressure steam generated from transfer-line exchanger heat recovery, furnace convection-section heat recovery and boiler-feedwater economization drove cracked-gas, propylene and ethylene-refrigeration compressor turbines, while often providing substantial steam export. Depending on feedstock and cracking severity, additional heat recovery from quench-water and quench-oil systems further enhanced steam generation and utility integration, creating a steam economy closely coupled to furnace operation. A representative conventional ethylene steam system is shown in Figure 8. An integrated ATR-hydrogen concept is illustrated in Figure 9.

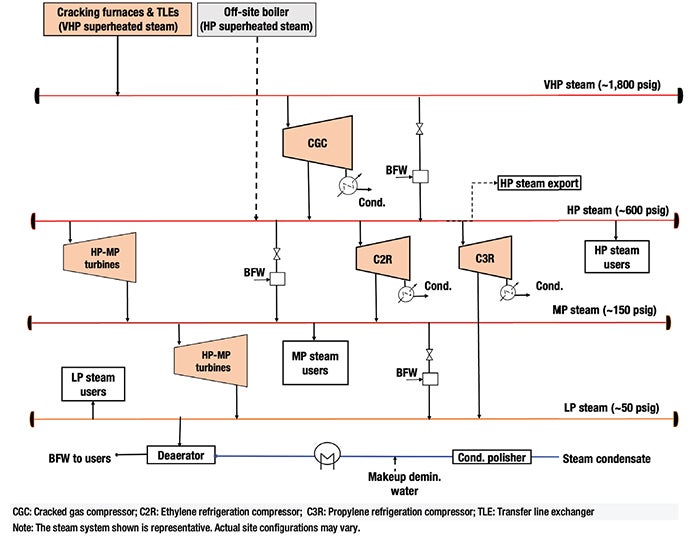

FIGURE 8. This steam system matches a typical configuration used in many ethane cracking plants

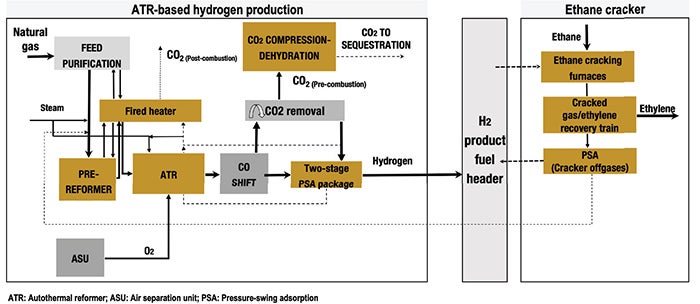

FIGURE 9. This schematic illustrates an integrated ethane cracker and ATR-based hydrogen-production system with CO2 capture.
Hydrogen firing is the near-term decarbonization pathway receiving the most commercial attention. Replacing conventional fuel with low-carbon hydrogen can substantially reduce direct furnace CO2 emissions, but does not materially change downstream compression, refrigeration or fractionation steam requirements. The primary utility impacts occur in the furnace system itself; reduced fluegas mass flow and altered flame-radiation characteristics can reduce convection-section heat recovery and modestly decrease steam generation. Any resulting steam shortfall can generally be addressed through auxiliary boiler support or utility optimization rather than large-scale driver reconfiguration, although this must be confirmed on a site-specific basis.
A deeper decarbonization option involves integrating with an ATR-based hydrogen-production facility that incorporates carbon capture. In such schemes, hydrogen can be recovered from cracker off-gas using pressure-swing adsorption (PSA), while the remaining tailgas is preheated, boosted as required and routed to the ATR. The ATR system produces additional low-carbon hydrogen for furnace firing, while captured CO2 is compressed and exported for sequestration or utilization. The steam system then expands beyond the cracker boundary to include hydrogen-production steam generation, carbon-capture steam demand, CO2 compression power and the overall steam-export strategy for the integrated complex. In effect, the cracker and hydrogen plant become a single integrated steam, power and carbon-management system.
An ethane cracker is used as the representative case because it provides a clear baseline for large-scale furnace firing, high-pressure steam generation and major compressor-turbine integration. The ATR-H2 pathway is selected because it preserves conventional furnace-based cracking while enabling substantial CO2 reduction through hydrogen firing and carbon capture, an approach now being pursued in commercial-scale low-carbon ethylene projects. Similar concepts can also be applied to liquid crackers, although feedstock-related differences in quench-oil and heat-recovery systems make the resulting steam balances more site-specific.
Electrification of cracked-gas, propylene and ethylene refrigeration compressor drives offers an independent pathway to additional CO2 reduction, particularly where low-carbon power is available. However, large-machine electrification is not an automatic consequence of hydrogen firing or carbon capture. Its attractiveness depends on site-specific factors, including steam availability, power costs, electrical infrastructure readiness, compressor configuration, torsional response, variable-frequency-drive (VFD) cooling, harmonic studies and feasibility of brownfield execution.
Electric cracking and other electrified reactor technologies can largely eliminate direct furnace emissions, but they also eliminate the fired-furnace heat recovery that has historically anchored the high-pressure steam system. While these technologies may become increasingly attractive as low-carbon power becomes more widely available, they impose large electrical loads and fundamentally alter the site’s steam-and-power balance. In such configurations, the traditional steam-driven compressor model may become structurally suboptimal, necessitating reassessment of the driver philosophy, auxiliary steam generation and the overall site energy architecture.

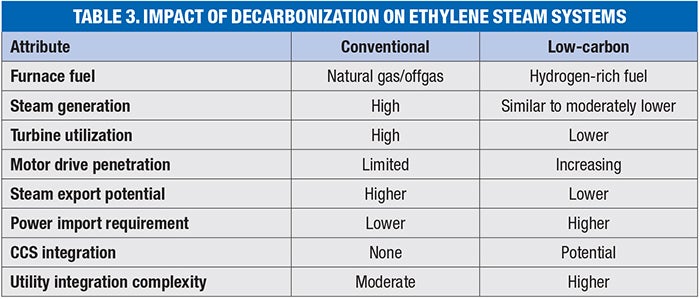

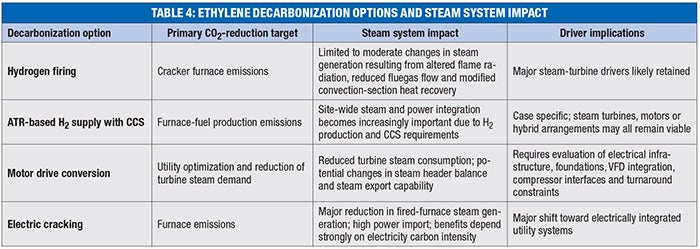

Steam-system performance impacts and utility-integration implications for the principal ethylene decarbonization pathways are summarized in Tables 3 and 4.
Emerging steam challenges
Across ammonia, methanol and ethylene plants, four common steam-system challenges are emerging. The first is the shift in the location of steam generation. In ammonia and methanol plants, steam generation is shifting from conventional reformer-based heat recovery to ATR/POx systems, synthesis-loop recovery and carbon-capture integration. In ethylene plants, furnace and transfer-line exchanger heat recovery remain important, but hydrogen firing, integrated hydrogen supply and electric cracking can change the overall steam balance.
The second is steam-header balance. Carbon capture can add new medium- or low-pressure steam demand, while motor-drive conversion can reduce turbine steam consumption. These changes affect extraction flows, letdown requirements, condensate recovery, auxiliary boiler operation and steam export.
The third is the increasing link between steam and electrical systems. Low-carbon projects may require electrolyzers, ASUs, CO2 compression, electric motor drives, VFDs, transformers and additional imported power. This shifts part of the project risk from the steam system to the electrical infrastructure.
The fourth is operating flexibility. Low-carbon configurations may depend on the availability of carbon capture, external hydrogen supply, renewable power, imported CO2, or auxiliary steam. Steam systems designed for stable base-load operation may need wider control ranges and revised startup, turndown and off-design strategies. These industry-wide changes are summarized in Table 5, which contrasts conventional steam-rich, turbine-dominated systems with low-carbon, power-integrated utility systems.

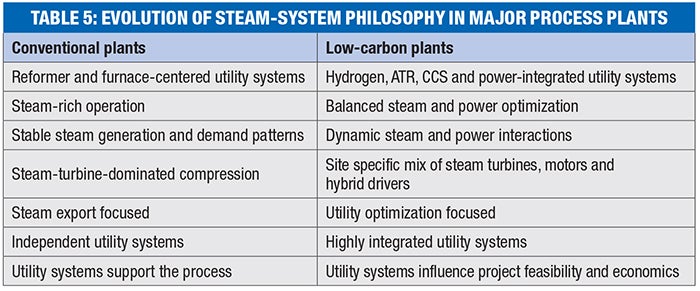

Turbines, drives and hybrid setups
Conventional ammonia, methanol and ethylene plants were designed around abundant internally generated steam, making steam turbines the natural choice for major drivers. Turbines recovered steam energy, balanced headers and minimized the need for imported power.
Decarbonization changes that logic. Where steam availability is reduced, or steam demand is redirected to carbon capture, large steam turbines may become less attractive. Electric motor drives can improve flexibility and reduce steam dependency, but they increase power import and require adequate electrical infrastructure. Hybrid arrangements may offer a practical compromise where steam availability remains significant but less predictable.
Driver selection should therefore be site-specific. Steam turbines remain attractive where the steam balance is strong, base-load operation is stable and steam export has limited value. Motor drives become attractive where power is low-carbon, startup flexibility is important, or steam is constrained. Hybrid configurations may be preferred where operators need flexibility across multiple operating modes.For brownfield projects, driver replacement is also an execution issue. Foundation reuse, compressor interfaces, lube-oil systems, substation capacity, cable routing, VFD cooling, harmonic studies, outage duration, and commissioning risk can determine whether motor-drive conversion is practical.
The key point is that driver selection should not be treated as an isolated rotating-equipment decision. It must be evaluated as part of the full steam, power, condensate, and carbon-management strategy. The main criteria for selecting steam turbines, motor drives, or hybrid arrangements are summarized in Table 6.

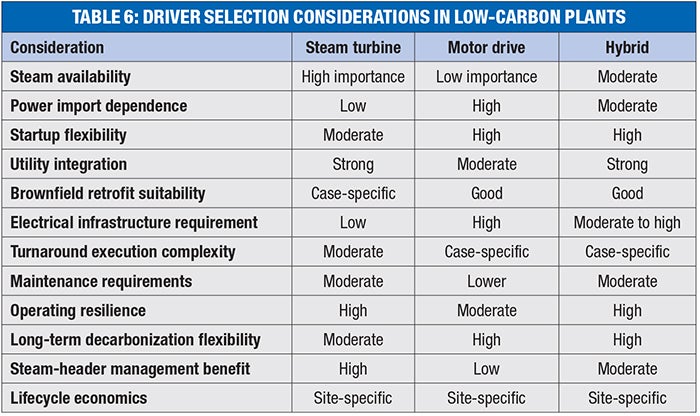

Conclusion
Steam systems remain central to energy integration in ammonia, methanol and ethylene plants, but decarbonization is fundamentally changing their role. Low-carbon hydrogen, ATR-based syngas generation, carbon capture, hydrogen firing, motor-drive conversion and electric cracking alter steam generation, header balance, condensate return, turbine utilization and power-import requirements.
No single low-carbon configuration is optimal across all three industries. Each pathway creates different steam and power interactions, and each requires industry-specific and site-specific evaluation. Steam systems can no longer be evaluated independently from electrical power systems, driver selection, carbon capture, hydrogen supply and overall utility architecture. In many projects, steam-system integration will become a binding constraint on feasibility, operability and economics.
The most competitive low-carbon projects will be those that address steam and power integration early, preferably at the pre-FEED stage, and optimize the full site utility system rather than treating steam as a secondary utility. ■
–Edited by Mary Page Bailey
